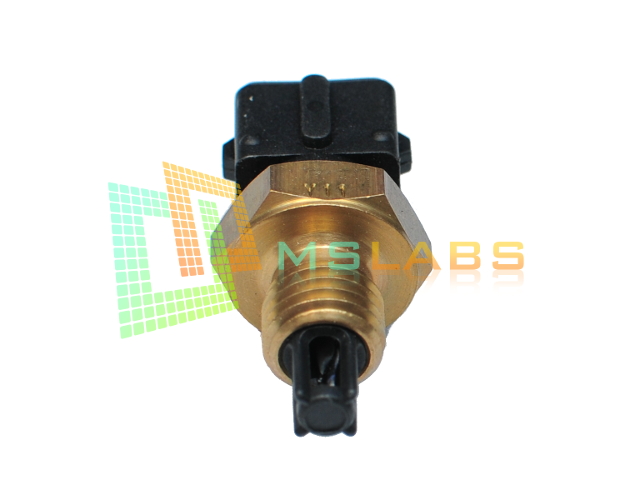

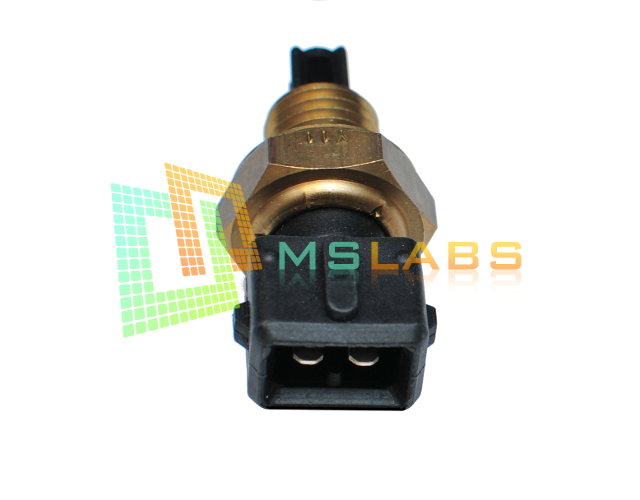

IAT Sensor Kit

Open Element intake air temperature kit to replace the factory air temperature sensor. Small size and weight, easy to install.


Open-element air temperature sensor to replace a stock closed-element type sensor. Threaded body to ensure the sensor stays in place under boost. Crush washer (included) for a perfect seal - no need for teflon tape or liquid sealants.

Replacing a closed element sensor with an open element ensures a more accurate measurement, as well as a faster response in reading the air temperature, which is extremely important under boost.

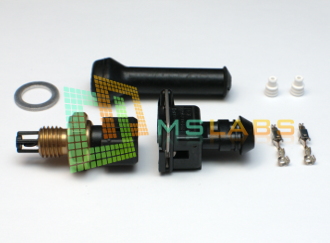

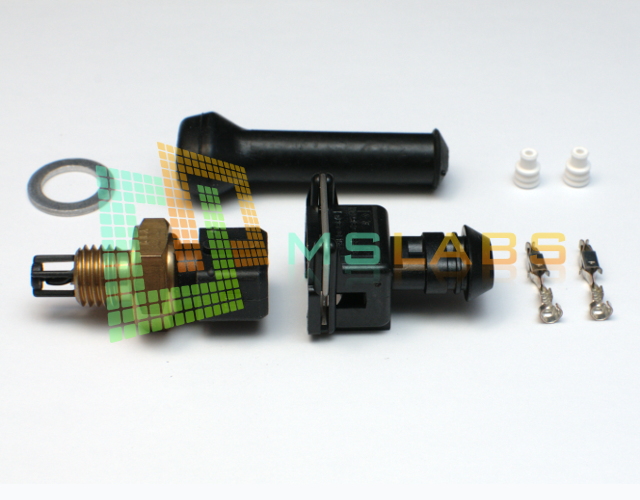

This kit includes the sensor, connector, pins, wire seals, rubber boot and crush washer.

Product Features

  • Fast acting
  • Reliable
  • Threaded body
  • Low weight
  • Compact dimensions
  • Standard automotive connector

Product Specifications

  • Weight: 22g (3/4 oz)
  • Thread: M12x1.5mm
  • Head: M19 Hex
  • Length: 44mm (1" 3/4) tip-to-connector
  • Material: Brass, ABS plastic
  • Temperature range: -30°C to +120°C
  • Max temperature: +150°C

Product Options

There are no options for this product.




  • No manuals found. Please contact us for support.
